SAP Ariba and SAP HANA to Azure ADLS Gen 2

Hello Relay

To bring data from SAP Ariba and SAP HANA to Azure Data Lake Storage Gen2 (ADLS Gen2), you can use a combination of Azure Data Factory (ADF), SAP connectors because SAP HANA data can be copied to ADLS Gen2 using Azure Data Factory’s SAP HANA connector.

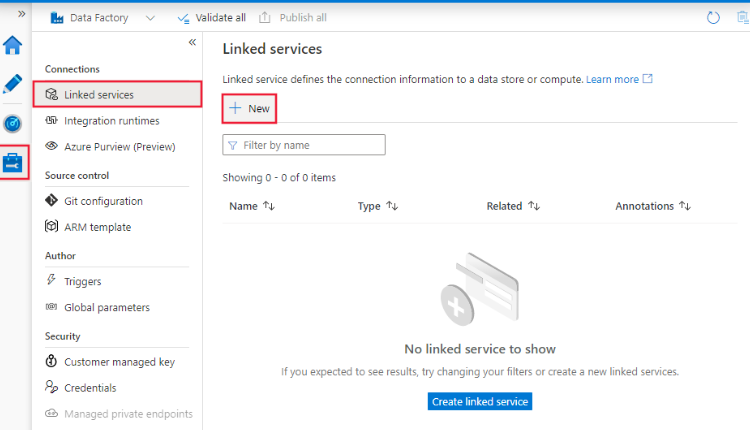

• In ADF, go to Manage > Linked Services > New.

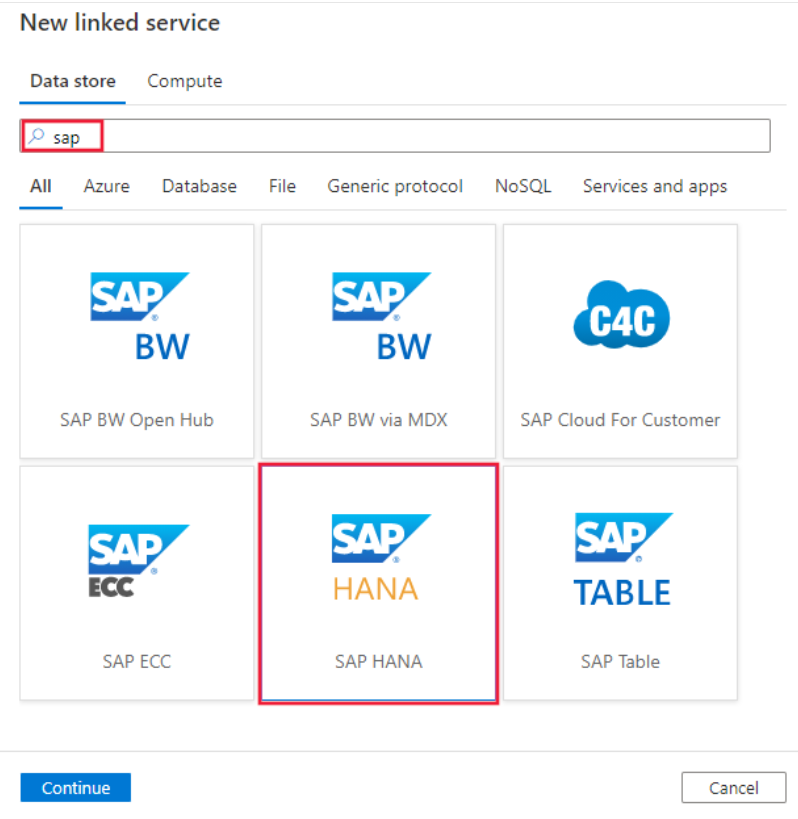

• Select SAP HANA.
• Configure: Server: SAP HANA server address, Port: Default is 3XX15 (replace XX with instance number). Authentication: Use Basic (username/password) or Windows authentication. Integration Runtime: Choose Azure IR or self-hosted IR (for on-premises).
• Test the connection and save
•

Post which in ADF, create a dataset for SAP HANA.

• Select the SAP HANA linked service.
• Specify the schema and table or write a custom SQL query to extract data (e.g., from Analytic/Calculation views or Row/Column tables).
• Go to Linked Services > New > Azure Data Lake Storage Gen2.
• Configure: Storage Account Name: Select your ADLS Gen2 account. Authentication: Use Account Key, Service Principal, or Managed Identity. Test the connection and save.
•

Create a dataset for ADLS Gen2.

• Specify the file format (e.g., Parquet, CSV) and folder path (e.g., data/saphana/).
• Create a pipeline in ADF and add a Copy Activity.
• Set the SAP HANA dataset as the Source.
• Set the ADLS Gen2 dataset as the Sink.

SAP Ariba data is typically accessed via APIs (REST or SOAP) or exported reports. Since ADF does not have a native SAP Ariba connector, you can use the HTTP or REST connector or third-party tools like CData Sync.

1. In ADF, go to Linked Services > New > REST.
2. Configure: Base URL: SAP Ariba API endpoint (e.g., https://api.ariba.com/v2/), Authentication: OAuth 2.0 with Client Credentials flow. Enter Client ID, Client Secret, and token endpoint.
3. Create a dataset for the REST service.
4. Specify the relative URL and parameters for the API call (e.g., /reports for reporting data).

Post which Add a Copy Activity in an ADF pipeline.

• Set the REST dataset as the Source.
• Set the ADLS Gen2 dataset as the Sink.
• Map the API response fields to the ADLS Gen2 file structure.
• Use pagination rules if the API returns paginated data.

Use API filters (e.g., modifiedDate) to fetch only new or updated records. Store the last processed timestamp in a control table or ADLS Gen2 file to track increments.

References: https://learn.microsoft.com/en-us/azure/data-factory/connector-sap-hana?tabs=data-factory

Hope the above answer helps! Please let us know do you have any further queries.

Please do not forget to "Accept the answer” and “up-vote” wherever the information provided helps you, this can be beneficial to other community members.
