Azure Firewall - classic rules - SNAT learned prefixes

Question

Azure Firewall - classic rules - SNAT learned prefixes

Peter Stieber 245

I am testing the firewall in the lab, and the following API call always returns an empty object

POST https://management.azure.com/subscriptions/subid/resourceGroups/rg1/providers/Microsoft.Network/azureFirewalls/azureFirewall1/learnedIPPrefixes?api-version=2024-05-01

The firewall is using classic rules. A Route Server is deployed in the same VNET. BGP is up and prefixes are being advertised by the peer to the Route Server

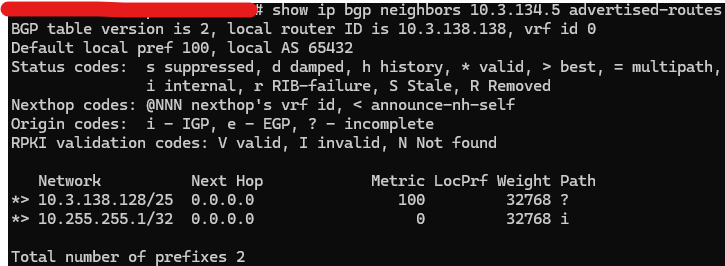

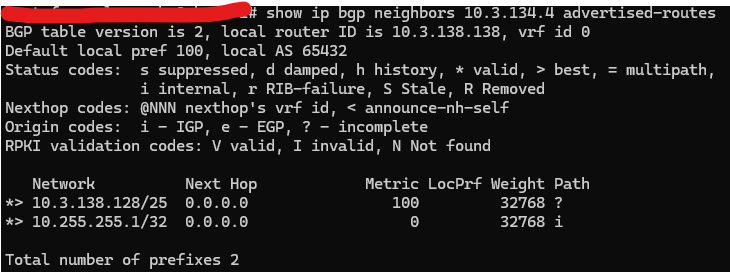

From PEER: User's image

User's image

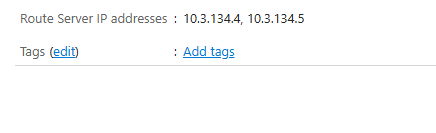

RouteServer IPs:

User's image

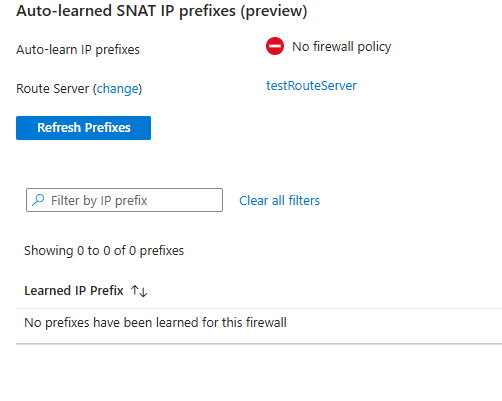

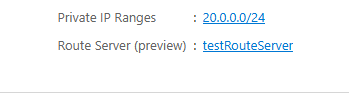

FW settings:

User's image

The response I am getting from API

{}

In GUI I also see nothing

User's image

1 answer

Your answer

Answer 1

Hi Peter Stieber,

Welcome to Microsoft Q&A and Thank you for Posting your Query Here!

As i observed from the uploaded images and context

Auto-learn IP prefixes are disabled because the firewall is using classic rules, not a Firewall Policy.
The GUI stating that "No firewall policy", which confirms that auto-learn SNAT IP prefixes is not active.
The Route Server is correctly linked (testRouteServer), but no prefixes are learned.
Shows that the BGP peers are advertising two prefixes(10.3.138.128/25 ,10.255.255.0/32
This confirms that BGP is functioning, and the Route Server is receiving routes.
Confirms the Route Server is deployed and associated.
The API response is {} — an empty object, matching what the GUI shows ("No prefixes have been learned").

So, the reason why the API Returns an Empty Object { } is:

The learnedIPPrefixes API only works when:

Azure Firewall is configured with a Firewall Policy.

Auto-learn SNAT prefixes is enabled.

Since your firewall is using classic rules, this feature is not supported, and the API will always return an empty object regardless of BGP or Route Server configuration.

To Overcome this and to enable SNAT prefix learning and get meaningful API responses, you may need to follow this step:

Refer: https://learn.microsoft.com/en-us/rest/api/firewall/azure-firewalls/list-learned-prefixes?view=rest-firewall-2024-05-01&tabs=HTTP

Migrate to Firewall Policy:

Microsoft recommends using Firewall Policies over classic rules.
You can migrate your existing configuration to Firewall Policy using the Azure portal, PowerShell, CLI, or ARM templates.
Once migrated, go to the Firewall Policy settings and enable the feature.
Once migrated, the learnedIPPrefixes API should begin returning prefixes as expected.
The firewall will then start learning prefixes every 30 minutes.

Microsoft Learn Document: https://learn.microsoft.com/en-us/azure/firewall-manager/policy-overview

if you found the above response is helpful to you, please do not forget to "Accept the answer" this can be beneficial to other community members.

Thank you again for your time. I’m happy to continue supporting you!

Thanks

Harish.

Peter Stieber 245 Reputation points

2025-08-26T07:27:55.99+00:00

Documentation does not mention that it works only on policy based firewall, does it ?
Harish Peddapally 240 Reputation points Microsoft External Staff Moderator

2025-08-26T08:11:19.0733333+00:00

Hi Peter Stieber,

Thanks for the follow-up!

You're absolutely right to question the documentation that the official documentation for learnedIPPrefixes does not explicitly state that it only works with Firewall Policies

However, based on observed behavior and community discussions

here's what we've found:

When Azure Firewall is configured using classic rules, the learnedIPPrefixes API call consistently returns an empty object { }, even when BGP is up and prefixes are being advertised.

This aligns with what the Azure portal shows that no learned prefixes unless a Firewall Policy is attached and Auto-learn SNAT IP prefixes is enabled.

The feature appears to be functionally tied to Firewall Policy mode, even if not explicitly documented.

So, while the documentation doesn't clearly say "this only works with Firewall Policy," the actual implementation behavior strongly suggests that classic rule-based firewalls do not support SNAT prefix learning via this API.

Thanks,

Harish.
Harish Peddapally 240 Reputation points Microsoft External Staff Moderator

2025-08-27T11:44:34.9566667+00:00

Hi Peter Stieber,

Just checking to see if you have a chance to check my previous response and helped, do let me know if you have any further questions on this.

Thanks,

Harish
Harish Peddapally 240 Reputation points Microsoft External Staff Moderator

2025-08-28T08:55:39.59+00:00

Hi Peter Stieber,

Following up to see if you have a chance to check my previous response and helped, do let me know if you have any further questions on this.

Thanks,

Harish.
