Replace existing file and upload as a new version in a checkout enabled document library

Hello @Rijo Rajan,

Thank you for posting your valuable question on Microsoft Q&A forum.

Please understand that our forum is a public platform, and we will modify your question to cover your organization domain name in the description. Please notice to hide these personal or organization information next time you post error or some information to protect personal data.

You’re running into “by design” behavior in SharePoint when Require check out is enabled. When the library requires check out, others can’t overwrite a file until someone checks it out. Only after you check out → upload same name → check in does SharePoint store a new version. Microsoft also cautions that requiring check out is not ideal for co‑authoring and can slow collaboration—something to consider if your scenario doesn’t strictly need enforced locks.

For more information, please refer to:

• Check out or check in files in a document library - Microsoft Support
• Set up a library to require check out of files - Microsoft Support
• Top questions about check out, check in, and versions - Microsoft Support

You can Use Power Automate to Automate File Replacement:

Before create your flow, Ensure target library is configured:

• In the target document library (the one with your “real” files), confirm:
  • Versioning is ON (Major versions at minimum).
  • Require Check Out is Yes (since you chose Option 2 earlier).
  • (Optional)Content approval if you need review before final visibility.

How to use Power Automate to Automate File Replacement:

Step 1: Trigger the Flow

• Access to Power Automate (flow.microsoft.com) > Sign in to your account
• Click Create > Automated cloud flow
• Use:

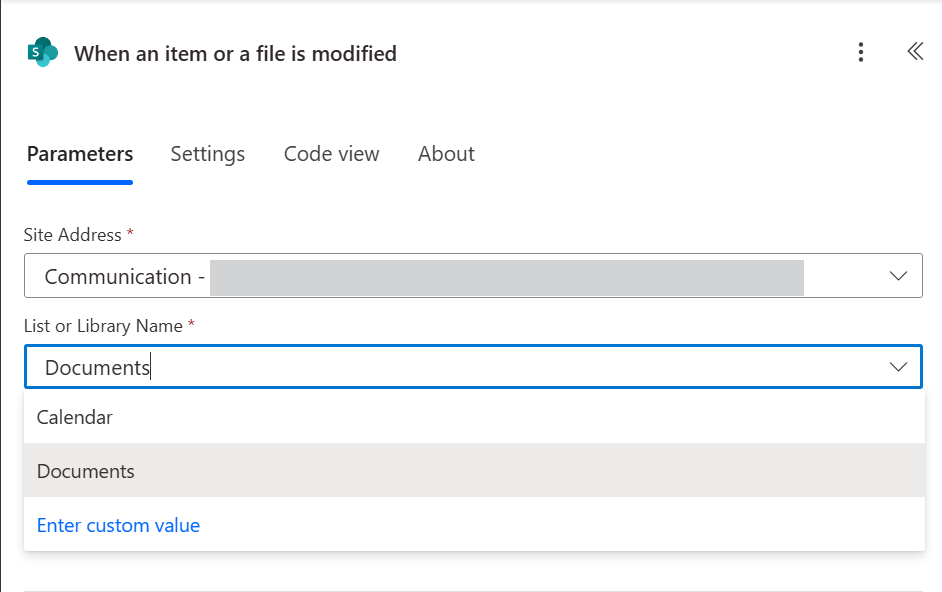

  • Trigger: “When a file is created or modified” in SharePoint.
  • Inside your trigger, choose your Site Address and Library Name

Step 2: Get File (Properties only)

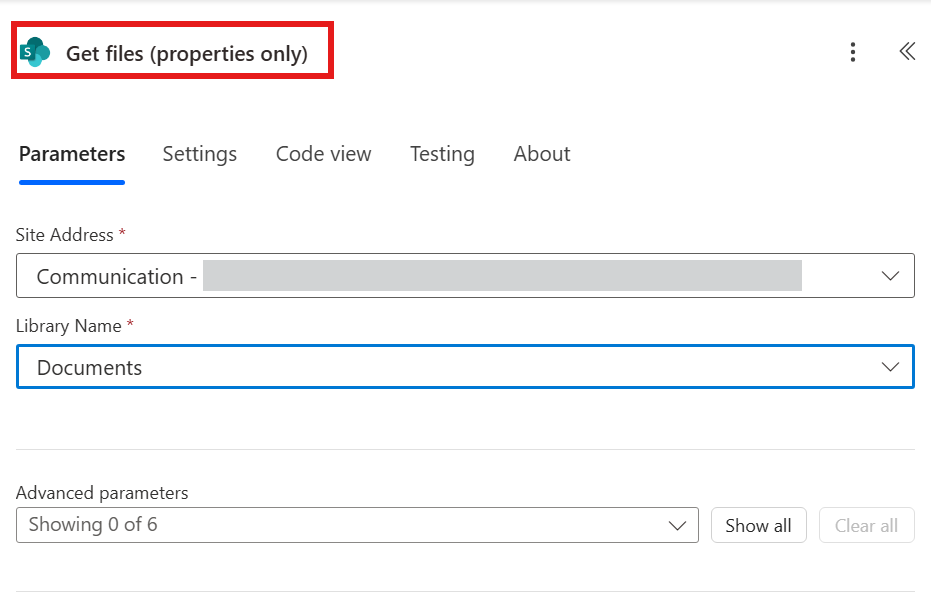

• Action: “Get file (properties only)” > SharePoint
• Use the file name from the trigger to search in the target document library.

Step 3: Apply to Each File

If multiple files are uploaded:

• Add “Apply to each” loop to process each file individually.

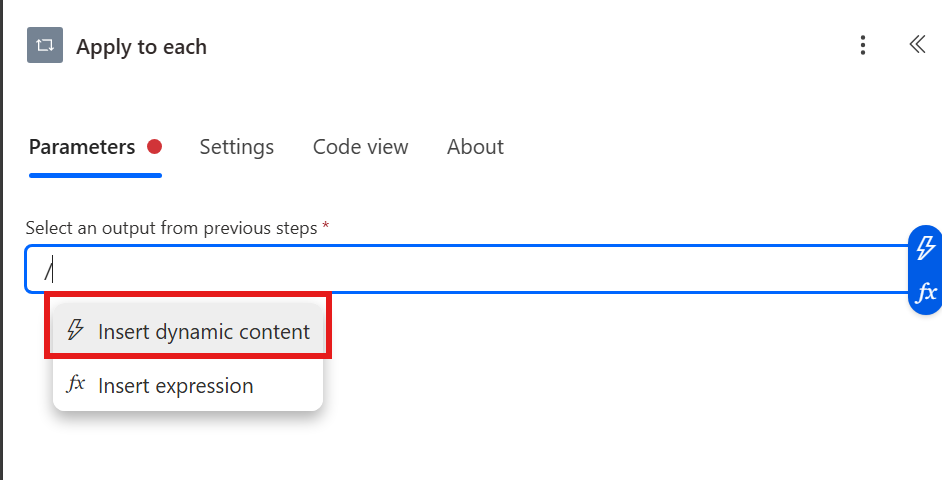

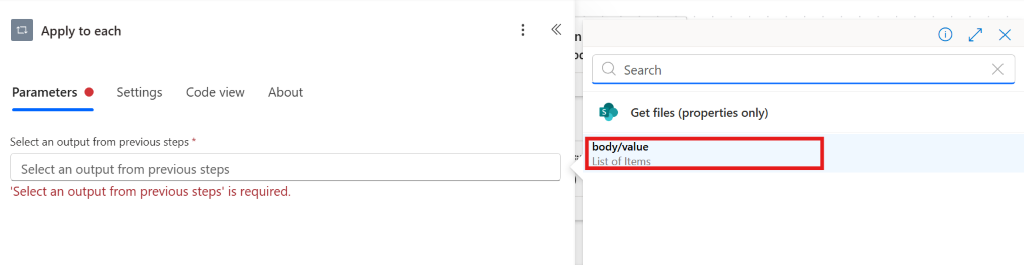

• Under Select an output from previous steps, type: "/" > Insert dynamic content > choose body/value from the Get files step

Step 4: Check Out Existing File

Inside the loop:

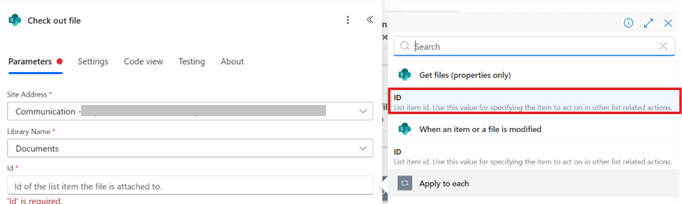

• Add “Check out file” > SharePoint  Use the Identifier from the file properties. (Refer to step 1)
• Under Id, type: "/" > Insert dynamic content > Choose ID under Get files step

Step 6: Update Existing File

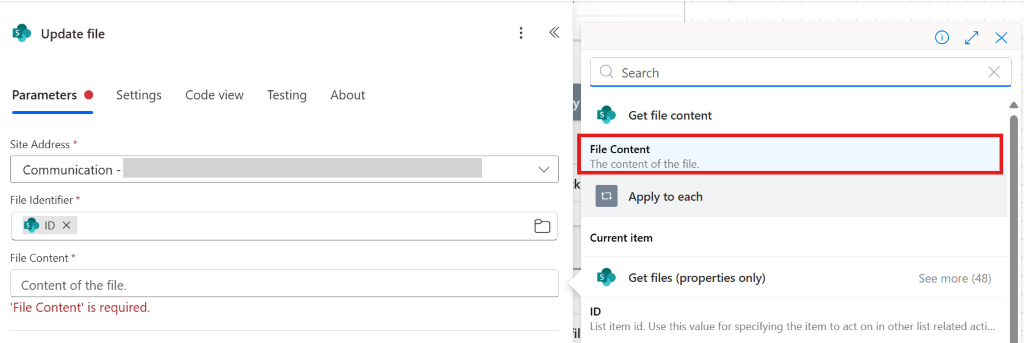

• Add: “Update file” > SharePoint
• Use the Identifier of the existing file
• Use the new file content from Step 5

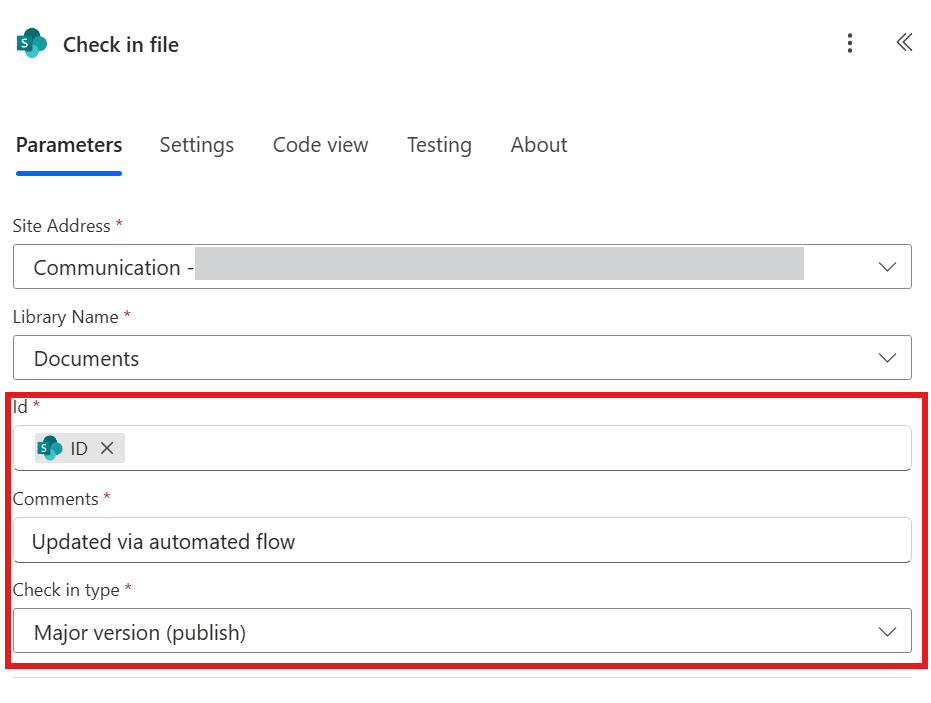

Step 7: Check In File

Add:

• “Check in file” > SharePoint
• Use the same Identifier
• Add a comment like “Updated via automated flow”
• Check in type: similar to your Versioning Settings.

• Click Save

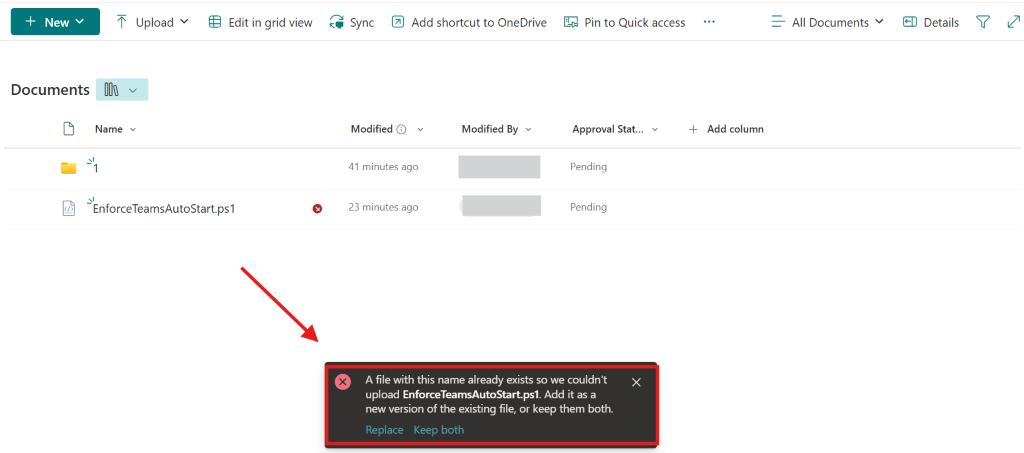

After Saving, you can try to upload the file again. You'll see 2 options below:

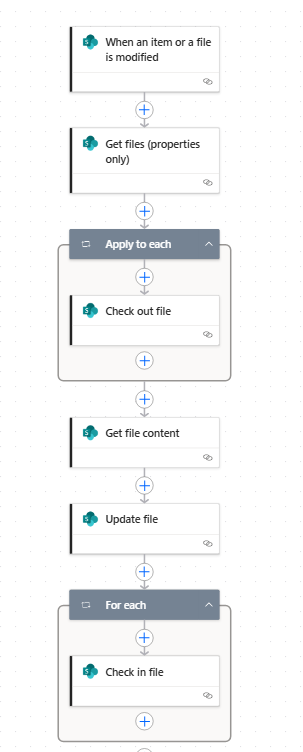

You can use this image as a reference to your flow:

Please feel free to reply if you need any further assistance. Thank you for your patience and understanding!
