Public ip sku upgrade of availability set vm

Question

Public ip sku upgrade of availability set vm

Shubham Prajapati 15

Hi I have 2 vms in availability set both have basic public ip. I want to know can I upgrade the ip of vm one after the other. Somewhere I read that mixing of public ip sku is not allowed.Is there any way to do this without any downtime.vms are not behind lb.

1 answer

Your answer

Answer 1

Andreas Baumgarten 126K MVP Volunteer Moderator

Hi @Shubham Prajapati ,

please take a look here: Upgrade all public IP addresses attached to VMs in an Availability Set from Basic to Standard

That's a good description how to update the Public IP addresses of VMs in an Availability Set.

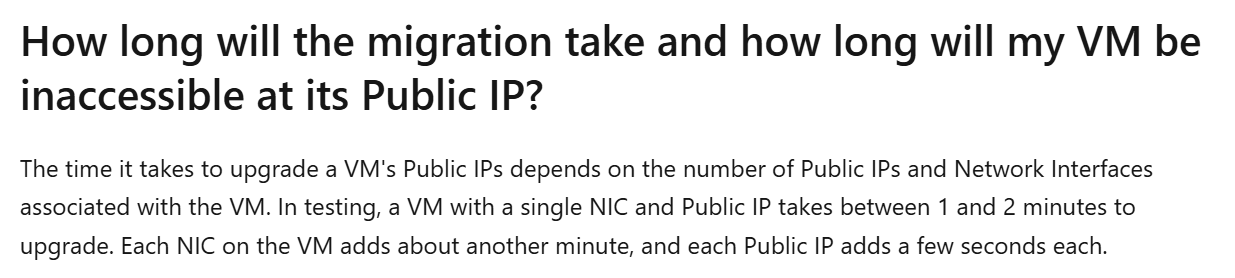

But there will be a short downtime:

User's image

Source: https://learn.microsoft.com/en-us/azure/virtual-network/ip-services/public-ip-upgrade-availability-set#how-long-will-the-migration-take-and-how-long-will-my-vm-be-inaccessible-at-its-public-ip

I am not aware of a different way without any downtime.

(If the reply was helpful please don't forget to upvote and/or accept as answer, thank you)

Regards

Andreas Baumgarten

Shubham Prajapati 15 Reputation points

2025-08-28T18:10:06.9166667+00:00

I want to upgrade manually from the portal
Andreas Baumgarten 126K Reputation points MVP Volunteer Moderator

2025-08-28T18:31:08.6866667+00:00
Hi @Shubham Prajapati ,

in this case you can try the following steps for each VM/Public IP:

Switch the Public IP from Dynamic to Static allocation (if Dynamic allocation is set)

De-associate the Public IP from NIC

Upgrade the Public IP from Basic to Standard

Associate the Public IP with NIC

But there is a downtime/interruption as well.

(If the reply was helpful please don't forget to upvote and/or accept as answer, thank you)

Regards

Andreas Baumgarten
Shubham Prajapati 15 Reputation points

2025-08-28T18:32:41.56+00:00

Yes but availability set don't allow mixing of public ip sku there i want confirmation.
Thanmayi Godithi 555 Reputation points Microsoft External Staff Moderator

2025-08-28T19:02:22.8266667+00:00

Hi @Shubham Prajapati,

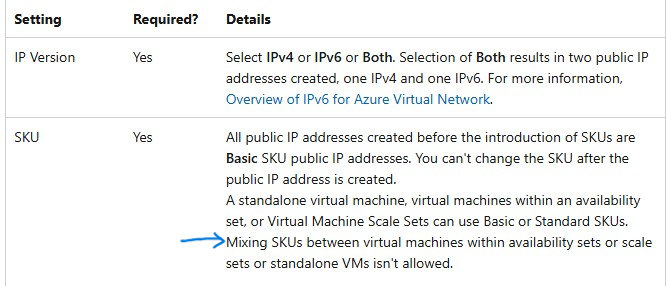

You are correct — Availability Sets do not support mixing Basic and Standard Public IP SKUs. As per Microsoft documentation, if your VMs are in the same Availability Set, all attached Public IPs must be upgraded to Standard.

Reference: https://learn.microsoft.com/en-us/azure/virtual-network/ip-services/virtual-network-public-ip-address

That’s why the official guidance says you need to upgrade all Public IP addresses of the Availability Set VMs together.

Kindly let us know if the above helps or you need further assistance on this issue.

If the reply was helpful, please don't forget to upvote and/or accept as answer, thank you
Andreas Baumgarten 126K Reputation points MVP Volunteer Moderator

2025-08-28T19:30:05.52+00:00

Hi @Shubham Prajapati ,

I want to upgrade manually from the portal

Yes but availability set don't allow mixing of public ip sku there i want confirmation.

So the only option is to use the solution based on PowerShell I provided in my first answer, and accepting the short downtime.

(If the reply was helpful please don't forget to upvote and/or accept as answer, thank you)

Regards

Andreas Baumgarten
