Assess a database with Azure Migrate

Azure Migrate offers tools to assess your current on-premises workloads, providing insights for migration planning. Also, you can perform an agentless environment discovery or use agents to conduct a dependency analysis. This helps identify the dependencies between different components in your environment.

What is Azure Migrate?

Azure Migrate simplifies the process of migrating, modernizing, and optimizing your Azure environment by offering a wide range of comprehensive services. It covers all pre-migration steps, including discovery, assessments, and right-sizing of on-premises resources for infrastructure, data, and applications. Additionally, Azure Migrate allows integration with third-party tools, expanding its capabilities to support a wide range of use-cases.

Azure Migrate supports discovery and assessment of different SQL Server deployments, such as SQL Server Always On Failover Cluster Instances (FCI) and Always On Availability Groups (AG).

There are several tools available in Azure Migrate, such as Azure Migrate: Discovery and Assessment and Migration and Modernization, which can be integrated with other Azure services, independent software vendor (ISV) offerings, and support the assessment, migration, and modernization of servers, databases, web apps, and virtual desktops.

For example, if you're assessing the entire SQL Server data estate at scale on VMware, you can use Azure Migrate to get Azure SQL deployment recommendations, target sizing, and monthly estimates.

During the discovery phase, Azure Migrate can also be used to scan the network and identify all SQL Server instances and features used within your organization.

Assessment tools

The Azure Migrate hub for assessment includes these tools:

Azure Migrate: Discovery and assessment

There are three assessment types that you can create using the Azure Migrate: Discovery and assessment tool.

• SQL Server discovery and assessment

  It supports SQL Server deployments running in VMware, Microsoft Hyper-V, and physical environments, in addition to IaaS services of other public clouds. It provides an agentless discovery, cost estimation and optimal Azure SQL configuration. It does require an Azure Migrate appliance that you deploy on-premises. This tool is suitable for workloads where you need to assess the readiness of both virtual machines and physical servers, not limited to just SQL Servers.



  During the discovery phase, SQL Server discovery and assessment can also be used to scan the network and identify all SQL Server instances and features used within your organization. This may provide valuable insights into your existing SQL Server environment, enabling you to assess the readiness and scope of your migration project.

• Business case

  This assessment type helps you to develop a comprehensive business case to assess the return on investment for migrating servers, SQL Server deployments, and ASP.NET web apps to Azure. You can also eliminate uncertainty and gain insights on Total Cost of Ownership (TCO), resource utilization, and quick wins for migration and modernization.

• Optimize costs

  This assessment type uses agentless discovery, Azure readiness checks, and dependency analysis for efficient on-premises mapping and identification of resources ready for migration. It uses insights to estimate the cost of migrating your resources to Azure.

Exercise: Create and configure Azure Migrate assessment

To run this exercise, ensure you follow these steps before proceeding:

Prerequisites

• SQL Server 2022 with the latest AdventureWorks database.

• Once the database has been restored, run the following command:

  USE [AdventureWorks]
  GO

  ALTER TABLE [Person].[Person] ADD [Next] VARCHAR(5);

  CREATE PROCEDURE [HumanResources].[usp_legacyIntegration]
  AS
  SELECT DataCreated, UserID, ActionID
  FROM LogDB..Logs


• A SQL Server user with read access to the source database.

Task 1: Create an Azure Migrate project

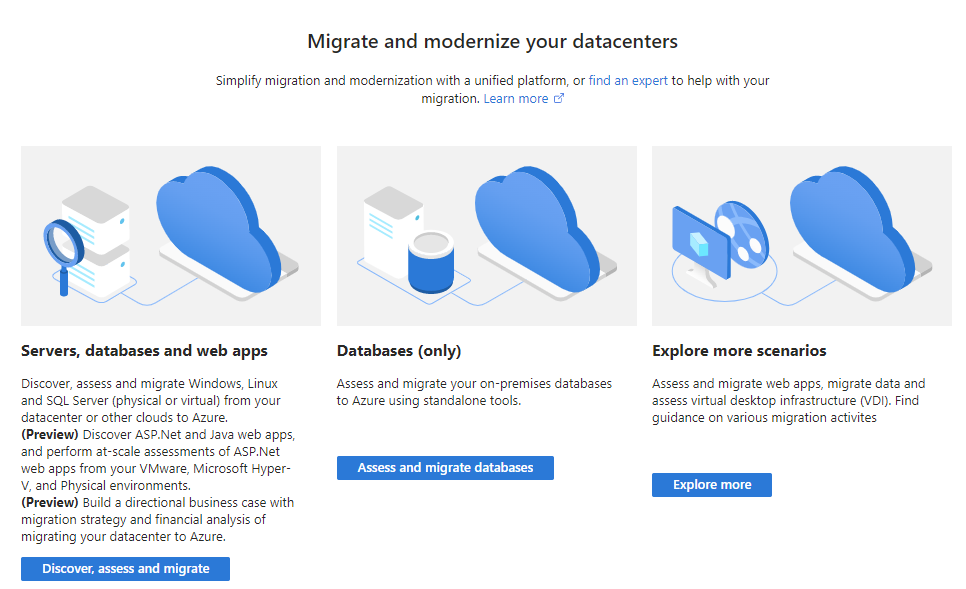

1. In the Azure portal, search for Azure Migrate.
2. In Services, select Azure Migrate.
3. In the Migration goals section, select Servers, databases and web apps, and then select + Create project.
4. In the Create project page, select the Azure subscription, and the resource group.
5. In Project Details, specify the Project and the Geography in which you want to create the project.
6. Select Create.

Task 2: Configure SQL Server discovery and assessment

1. In your Azure Migrate project, go to Servers, databases and web apps.
2. Select Discover under Azure Migrate: Discovery and assessment.
3. In Discover machines, select Yes, with VMware vSphere hypervisor or Physical or other (AWS, GCP, Xen, etc.) based on your environment.
4. Download and set up the Azure Migrate appliance following the provided instructions.
5. After the appliance is configured, it will automatically discover your SQL Server instances and databases.

Task 3: Review assessment results in Azure Migrate

1. Once discovery is complete, go to Servers, databases and web apps in your Azure Migrate project.

2. Under Azure SQL, you'll see the discovered SQL Server instances and databases.



3. Select Assessed databases to review the assessment results and Azure SQL deployment recommendations.



Note that Azure Migrate provides comprehensive assessment results including readiness status, recommended Azure SQL deployment options, and cost estimates. Take a moment to review the assessment results and the different columns in the assessment report.
